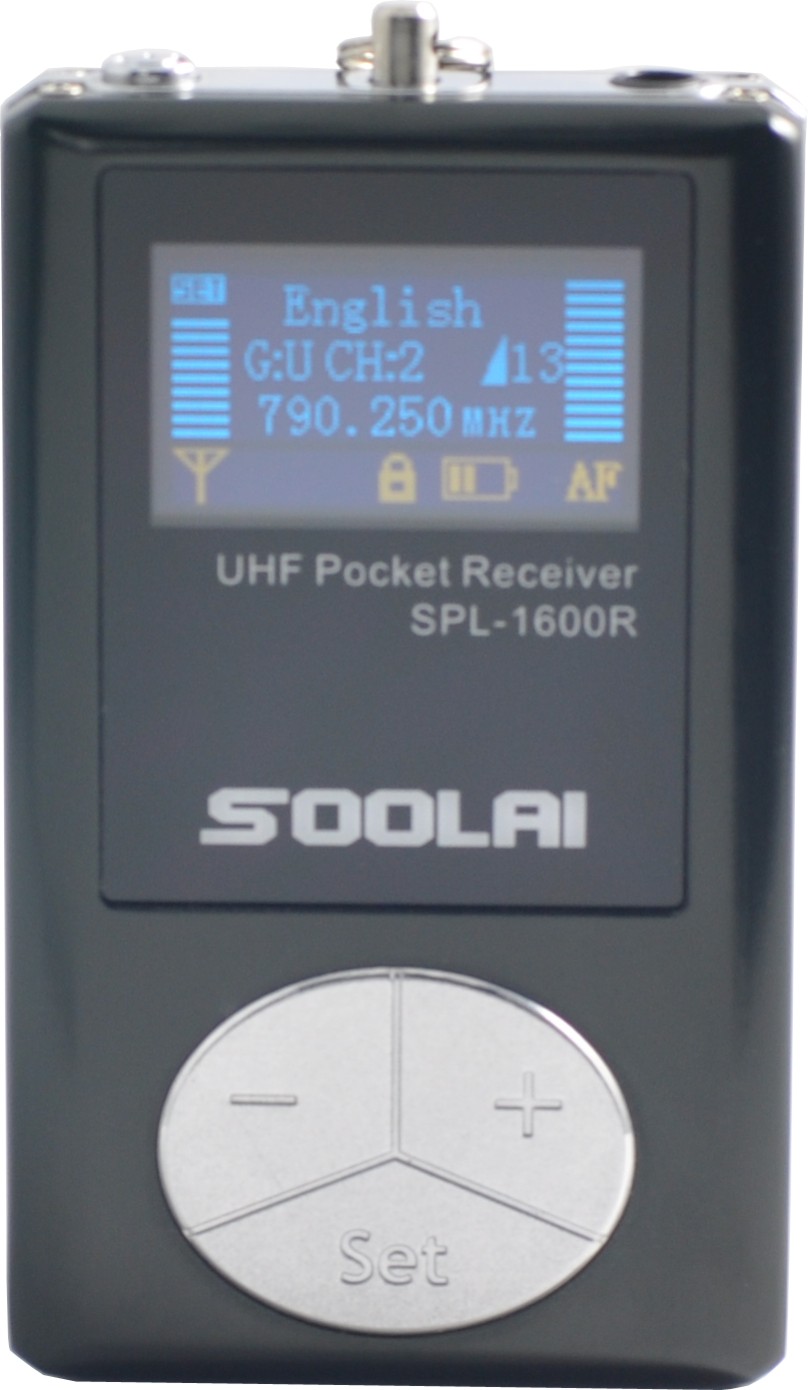

Portable Wireless Receiver SPL-1600R |
|
|
|
|
|
|
 |
| SPL-1600R |
|
|
|
|
|
|
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
| ● Portable design, super compact and lightweight. |
| ● Metal aluminum alloy shell design. |
| ● UHF band PLL synthesized design, 40MHZ bandwidth design, 1599 frequencies for select. |
| ● Digital Pilotone & RF Noise Lock" dual-squelch circuit of soolai original creation, to improve anti--interference |
| performance of system. |
| ● High performance double-IF circuit design. |
| ● RF track tuning filtering technical of Soolai original creation, with multi-stage high performance RF saw filters to get high |
| anti-interference to ensure multiple channels can be used simultaneously without interference. |
| ● Channel group management, with 32 channels in User Group, frequency and name of each channel can be set |
| independently by user. |
| ● Switching 32 channel (language) quickly, displaying languages' name/channel/frequency Simultaneously. |
| ● 128*64 dot matrix double-color OLED display. |
| ● OLED display channel group, channel, frequency, name, volume,lock, battery state, RF level, Audio level and overload |
| prompt. |
| ●. Digital 16 -step volume control of receiver. |
| ● Digital 21-step SQ adjusting of receiver. |
| ● Parameter setting with password protection. |
| ● Built-in polymer ion polymer battery, continuously working for 11-12hours. |
| ● Auto shutdown function, it will auto shutdown when no signal been received. |
| ● Unique design of the main device and the clip is separated, and there are two ways of wearing by lanyard and waist |
| hanging. |
| ● Variously charging equipments for choice, convenient to charge, disinfect, store and carry. |
| ● Operating range 200-300m (line-of-sight). |
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ |
| |
RF Carrier Frequency Range |
UHF 626～666MHz、780～820MHz、830～870MHz、863～865MHz |
|
| |
Oscillation Type |
PLL Synthesized |
|
| |
Frequency Stability |
±0.005% (0～50℃) |
|
| |
Display Screen |
OLED 128*64 dot matrix Double Color |
|
| |
Tuneable Frequendes |
1599 |
|
| |
Switching Bandwidth |
40MHz |
|
| |
Tunable Steps |
25KHz |
|
| |
Modulation |
FM ±45KHz deviation (nominal) |
|
| |
Intermediate Frequency(IF) |
Double-IF 110.6MHz/10.7Mhz |
|
| |
Image Rejection |
80dB typical |
|
| |
Spurious Rejection |
80dB typical |
|
| |
Signal-to-Noise ratio |
>92dB typical (A-weighted ) |
|
| |
Total Harmonic Distortion |
<0.5% (Ref.±45KHz deviation 1KHz ) |
|
| |
Audio Frequency Response |
40～16,000Hz (±3dB) |
|
| |
RF Sensitivity |
2uV (60dB S/N) |
|
| |
Squelch threshold |
2uV，21 - step digital |
|
| |
Antenna |
Uses earphone cable (or External 1 / 4 - wave flexible antenna) |
|
| |
Earphone Output Connector |
3.5mm Connector |
|
| |
Earphone Output Control |
16 - step digital volume |
|
| |
Minimum Load Impedance |
12Ω |
|
| |
Power Supply |
Built - in Lithium ion Polymer battery, 3.7v / 600mAh |
|
| |
Operating Time |
12～13 hours |
|
| |
Dimension |
69mm*42mm*14mm |
|
| |
Unit Weight |
<50g (with battery) |
|
| |
Operating Temperature |
-20～70℃ |
|
| |
Operating Range |
200 - 300m (Environment dependent) |
|
| |
Shell |
Metal aluminium alloy shell, more color |
|
 |
|
|
